NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores

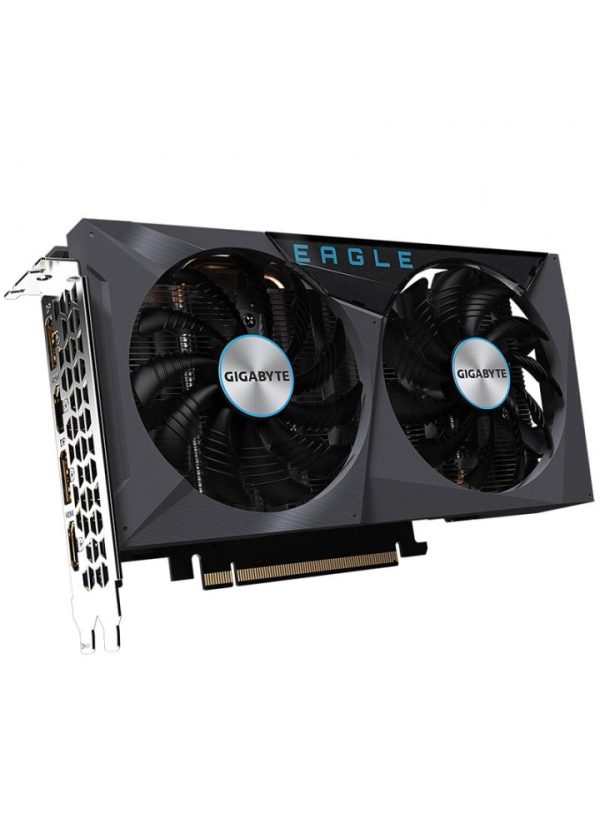

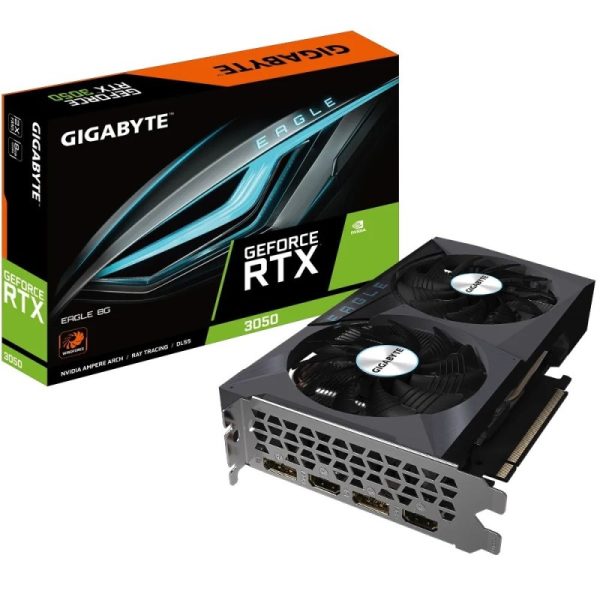

Powered by GeForce RTX™ 3050
Integrated with 8GB GDDR6 128-bit memory interface
WINDFORCE 2X Cooling System with alternate spinning fans
90mm unique blade fans
Protection back plate
WINDFORCE 2X COOLING SYSTEM
The WINDFORCE 2X cooling system features 2X90mm unique blade fans, the heatpipe directly touches the GPU, alternate spinning, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.
SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
-
Graphics ProcessingGeForce RTX™ 3050
-
Core Clock1777 MHz
-
CUDA® Cores2560
-
Memory Clock14000 MHz
-
Memory Size8 GB
-
Memory TypeGDDR6
-
Memory Bus128 bit
-
Memory Bandwidth (GB/sec)224 GB/s
-
Card BusPCI-E 4.0
-
Digital max resolution7680×4320
-
Multi-view4
-
Card sizeL=213 W=120 H=41 mm
-
PCB FormATX
-
DirectX12 Ultimate
-
OpenGL4.6
-
Recommended PSU450W
-
Power Connectors8 pin*1
-
OutputDisplayPort 1.4a *2
HDMI 2.1 *2 -
AccessoriesQuick guide
